Why X509 Certs are Problematic as Evidence of Org Identity

Provenant is advocating that ACDCs — specifically vLEIs or credentials with similar schemas and governance — be used as evidence (instead of X509 certs) in protocol-based interactions in telco, banking, supply chain, and similar contexts. Why would we do this, when so much of the web runs on PKI/X509, and that tech has excellent tools, is widely adopted, and has a 40-year track record of solid cryptography? What makes X509 certs in identity protocols less desirable than X509 certs in SSL? Here are some concrete reasons.

1. Governance is opaque, centralized, and expensive

A cert is protected by a cryptographic key. This sounds fancy, but it boils down to a single secret. How the secret was created or how it is managed on an ongoing basis is undefined. All we know, from the key binding in a cert, is that someone provided a public key before the certificate was created.

If I told you that a nuclear missile silo was safe from unauthorized access because, at the time of construction, its builders had configured a secret to guard the unlocking of the front door — and if the silo’s location appeared publicly on GPS, and I cheerfully admitted that there were no guards, fences, surveillance, deadbolts, or other safeguards, and I provided no further details about this solitary secret or its management — how confident would you be of adequate security? Would you be impressed with the planning of the builders?

Typically, cert and CA ecosystems implement policies to plug this gap. These policies may be quite ambitious, but they still set the bar too low. The governance of CAs accepted by browsers is theoretically open for public comment, but there are claims that in practice, it’s unresponsive, following directions from overly powerful browser manufacturers. The STI-GA that administers SHAKEN governance is maybe a better and more relevant example. Its governing spec, RFC9448, carefully describes how parties asking for a cert are authenticated, but then notes in section 4:

The challenge “token-authority” parameter is only used in cases where the VoIP telephone network requires the CA to identify the Token Authority. This is currently not the case for the Signature-based Handling of Asserted information using toKENs (SHAKEN) [ATIS-1000080] certificate framework governance but may be used by other frameworks. If a “token-authority” parameter is present, then the ACME client MAY use the “token-authority” value to identify the URL representing the Token Authority that will provide the TNAuthList Authority Token response to the challenge. If the “token- authority” parameter is not present, then the ACME client MUST identify the Token Authority based on locally configured information or local policies.

(Compare section 6 of ATIS1000080, which documents what SHAKEN does require.)

In most analyses, we assume that certs are issued by certificate authorities. These are vetted orgs, earnest about security. However, they aren’t the ones that choose or manage the keys in certs. This is like insisting that the control panel on our missile silo door must have its wiring and programming inspected by a master electrician who’s careful and cautious — but allowing that electrician to input the governing secret for the door based on advice from any employee of the construction company. Is that employee truly representing the construction company’s intent? Does he write passwords down on post-it notes and leave them on his lunchbox? Does she text the secret to her boss over SMS? The problem is not just that protections on this secret might be weak — it’s that nothing is known about the risks and protections on that secret. Knowing nothing about the root of ecosystem security is not a good basis for trust.

1.1 Unanswered questions

How many of the following issues, unspecified (or at least, not having transparent answers) by best-of-breed cert governance, can we afford to ignore if we want to achieve strong organizational identity?

We could go on…

Perhaps the policy administrator enforces good answers to some of these questions, but they are not quickly available in public documentation. Furthermore, using delegated certs — a feature pressure that’s inevitable, if you want to do org identity right — makes the opacity even worse, and the governance challenges far harder.

2. Binding is to keys, not identifiers

As already mentioned, an X509 certificate is bound to its issuee by an embedded public key. If the party claiming a cert-based identity can produce a digital signature that verifies with that public key, then we can conclude with some assurance that they’re the issuee.

This mechanism might achieve its theoretical, cryptographic goal of binding the cert to its owner with X bits of security. However, it has numerous problems from a practical, human standpoint. This is why certs give only some assurance about the identity of an issuee.

2.1 One key is not enough

A huge body of practical experience tells us that organizations need nuanced signing policies to authorize a merger or fire a CEO. Even in the 1600s, a junior clerk at the headquarters of the Dutch East India company probably couldn’t commit to a payment of millions of guilders without getting a second signer involved.

So why are we imagining, four hundred years later, that it’s safe to use the primitive single-signature mechanism of X509 certs as a protection on the reputation of modern corporations? Fraud certainly hasn’t become less common, or slower. Leaked keys on certs have bitten large, sophisticated organizations like Microsoft. Surely millions of less sophisticated organizations will be no safer.

We need something where 3 out of 7 members of the board must sign if the stakes are at level X – or an exec VP plus 2 out of 5 IT engineers must sign if the stakes are at level Y.

2.2 There’s no prerotation

The identity of an org should be guarded not just by an assertion about its current key, but by a cryptographic commitment to the next key (the one the owner will rotate to next). The next key is then managed in a different place, with independent protections. Such a scheme is called prerotation, and it drastically improves security, because even if a hacker can abuse a current key, they can’t rotate to new keys and take permanent control without accomplishing a second hack somewhere else. The identity owner thus has a failsafe that they can use to take control back.

Prerotation isn’t just a recovery issue. Without prerotation, certificate rotation produces anemic cryptographic proof of continuity of control by the certificate holder. We must trust the assertion of the CA that the old cert holder and the new cert holder are the same party.

An X509 extension could be designed for prerotation, perhaps using Certificate Transparency. However, such a mechanism would need to be developed, standardized, and adopted before it is accurate to claim it as a cert feature. Cert technology in its general deployment doesn’t support this crucial feature.

2.3 Maintenance challenges

Question: What work is necessary if the issuee has to rotate their key?

Answer: the old certificate has to be revoked, and a new one has to be issued.

This is painful, even with certificate management automation. It means that reissuance, redeployment, reconfiguration, and rebuilding of caches is a constant task. CRLs are useful, but complex. They can be inconvenient when connectivity is imperfect. OCSP and Certificate Transparency are also clever tools, but each has its own complications and challenges. (See 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14). The tools that do maintenance aren’t free to buy, deploy, operate, or develop, and they don’t guarantee perfect outcomes. Gaps can and do occur, even with sophisticated and well funded orgs — and they are painful, as embarrassed admins from Cisco, Microsoft, Google, Spotify, LinkedIn, Ericsson, Equifax, AWS, and Apple have admitted.

2.4 Disincentives to be secure

When conditions change, timely revocation is vital. However, the cost and effort to maintain a fabric of certs creates a strong incentive to avoid revocation.

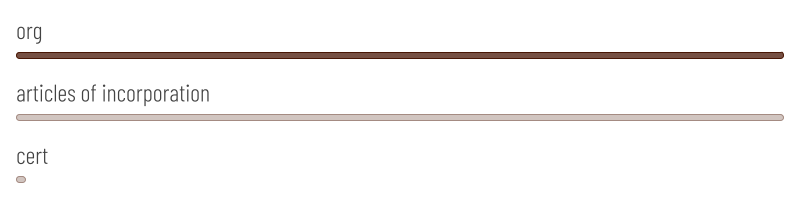

To alleviate the tension, the thinking is: Let’s make certs expire often, and delay revocation or key rotation until a new cert is issued on a natural expiration boundary.

Is this effective?

Suppose typical cert lifespan is 1 year, and PhonesRUs (a company that sells phone numbers and signs STIR/SHAKEN traffic on behalf of its customers) averages 1 cert key compromise every 2 years. This would mean that half of PhonesRUs’s certs will be compromised during their lifespan, and if they are compromised on average halfway through their lifespan, then for 6 months out of every 2 years, PhonesRUs will be operating with a compromised cert. But if PhonesRUs has an average cert lifespan of 90 days (the recommendation from STI-GA), then on the 1 occasion in 2 years that a cert is compromised, it is likely to be rotated within 45 days. Operating for 45 days with bad security is clearly better than operating that way for 6 months.

Note: It might seem like I’m being overly pessimistic to posit a cert key compromise every 2 years. However, 2 years is the midpoint in guidance about a safe key cryptoperiod in NIST 800-57 rev 5, section 5.3.4. And “compromise” doesn’t mean “known loss of control” but rather “meaningful risk that control has been lost”. Most IT teams experience staff turnover more than once every 2 years… And on top of that, we could consider the frequency of phishing, smishing, APTs, ransomware, bloatware, unpatched software, social engineering, and other sources of compromise. The risk that control over a cert’s key will be lost in 2 years is at least “meaningful”.

The conclusion that 45 days is better than 6 months is true as far as it goes, but: A) to shrink the insecure window by 4x, we have traded 4x the maintenance burden; and B) 45 days of compromised operations is still terrible, especially considering the fact that PhonesAreUs may be signing for tens of thousands of enterprises.

Suppose we shrink the lifespans of certs far more aggressively — i.e., to a week. Now we have 52x as many certificate request, issuance, installation, revocation, caching, and de-caching operations, and PhonesRUs still has 3.5 days of faulty security, on average, in a 2-year period. Presumably, other STIR/SHAKEN signers would be similar. How much havoc can fraudsters accomplish during 3.5 days when calls go out under a false signature? And how much has our flawed protection cost us?

What’s possibly worse is that by obsessively pursuing short-lived evidence, we’ve created a strong incentive to take the insecure and easy path: if there’s a risk of a compromised key, just wait until the cert expires. Because the management burden is already so high, nobody in such an ecosystem wants to do the secure thing: act immediately, be transparent, and cancel all the evidence that’s in active use. It’s just more management bother.

3. Scale and performance are problematic

One of the fundamental challenges with current cert-based organizational security initiatives is that the signers and cert holders are often trusted third parties, because they are the ones with the certs. This is true of STIR/SHAKEN in secure voice, for example, where the signature on a call is affixed by an originating service provider, not by the enterprise that makes the call.

Proposals to improve this are on the table, and Provenant strongly supports the general idea. Signing must be done not by phone companies, but by holders of telephone numbers.

Unfortunately, with certs, this means delegate certs, and this creates a huge scaling challenge. All of the preceding concerns become more acute if the number of signers and certificate holders changes from hundreds of PhonesRUs companies, to millions of enterprises and small businesses. Shall we increase the maintenance burden by 52x (certs rotate weekly), AND multiply the number of certificate holders by 10,000?

At such scales, performance also decreases (or cache latency goes up, a lot).

4. Significantly better alternatives exist

Since about 2016, the decentralized identity movement has been championing an upgrade to PKI’s 40-year-old “issue to keys” paradigm. W3C’s Decentralized Identifiers (DIDs), a standard since 2022, is a first wave of progress, and embodies much industry and cybersecurity wisdom. The Verifiable Credentials (VCs) standard, also released in 2022, builds atop DIDs and could be roughly characterized as next-generation X509. Conformant implementations now protect millions of identities, are in active exploration by big tech, and are the basis of citizen identity programs in many parts of Europe and Asia.

DIDs and verifiable credentials solve the problems with key rotation by creating an indirection: evidence is issued to an identifier, and the issuee’s identifier can update its key state without invalidating the evidence. I worked on both of these standards, and I remain proud of their virtues.

But there’s a hitch.

Evidence is also issued by an identifier, and the issuer’s identifier also has a rotatable key state. If the issuer updates their identifier, old evidence is invalidated, because the old key could be compromised and abused after the rotation. This risk is poorly understood in SSI circles, and deserves an article of its own.

One solution is to anchor issuance activity to a blockchain or similar data structure that proves when an issuance occurred. Unfortunately, the SSI community has been wrestling with the centralization, scale, and regulatory compliance challenges of blockchains for almost a decade, and success is elusive. Anybody who tells you the problems are happily solved is either uninformed or disingenuous. There are very real and very uncomfortable tradeoffs.

Also, even if DIDs and VCs solve some problems in identity evidence 1.0, opaque and clunky governance is still a headache. The best answer of the community so far is trust registries. These are a band aid; they just move the centralization back to a different level of the architecture. They are also immature and fragmented. And they primarily address governance for issuers, not issuees.

But there’s good news.

If DIDs and VCs are a second-generation solution, we’ve had identity evidence 3.0 since December 2022, when the first global-scale systems went to production with Authentic Chained Data Containers (ACDCs).

ACDCs are not just a format — they’re a methodology for creating verifiable evidence. ACDCs are issued by and issued to autonomic identifiers (AIDs). These are like DIDs, but with far stronger security guarantees. They impose stringent requirements on the key management behaviors of issuers and issuees. They support weighted multisig, prerotation, and independent witnesses to detect compromise. They can be upgraded to postquantum algorithms without disruption. They don’t require a blockchain, and thus have none of the challenges with scale, performance, or cross-jurisdiction regulatory compliance across jurisdictions.

The chaining in ACDCs is like X509 chaining on steroids. It is safer, more efficient, and more cacheable. It doesn’t depend on certificate authorities. It eliminates the need for trust registries.

As a bonus, ACDCs are actually smaller and simpler than VCs, and they are also more expressive. ACDCs can represent everything that fits in the VC data model, and many things that don’t. And ACDCs come with a graduated disclosure feature that achieves important privacy objectives. This model is more flexible than the one in SD-JWTs, uses less exotic cryptography than AnonCreds, and will make regulators, law enforcement, and private citizens happier than alternatives.

ACDCs and their related underpinnings have been codified by the Trust Over IP Foundation. The recently released ISO17442-3 (vLEIs) uses them.

For more details, you may want to read this comparison of ACDCs and SD-JWTs.

Identity is hard. Getting the evidence right is crucial. We’ve had X509 and PKI for four decades, and they’ve served us well. I’m glad my TLS sessions are secure. However, certs aren’t the right building block for major new identity infrastructure. It’s high time for an upgrade.
